TV Studio Basic Setup

  • The Picture graphic below shows a typical connection of one camera to the Extron Streaming Media Processor. Plus it also shows a computer connected to run a message/bulletin board. (For more info click 'Adding a Message Board' in the navigation links on the left.)

    Basic Studio
    Click Here to see the above graphic in a larger view.



Requirements and Cost

  • NOTE: The costs listed here were correct as of February 2016. They are posted here only as an approximation of expected cost and are subject to change.

    Canon R600 Camera
    Canon R600 Camera
    $200 to $290
    There may be other video camera models that will work with the Extron unit. But the Canon R600 has been tested and is known to work. We have also tested the Sony CX-405 and found that it does NOT work with the Extron unit.

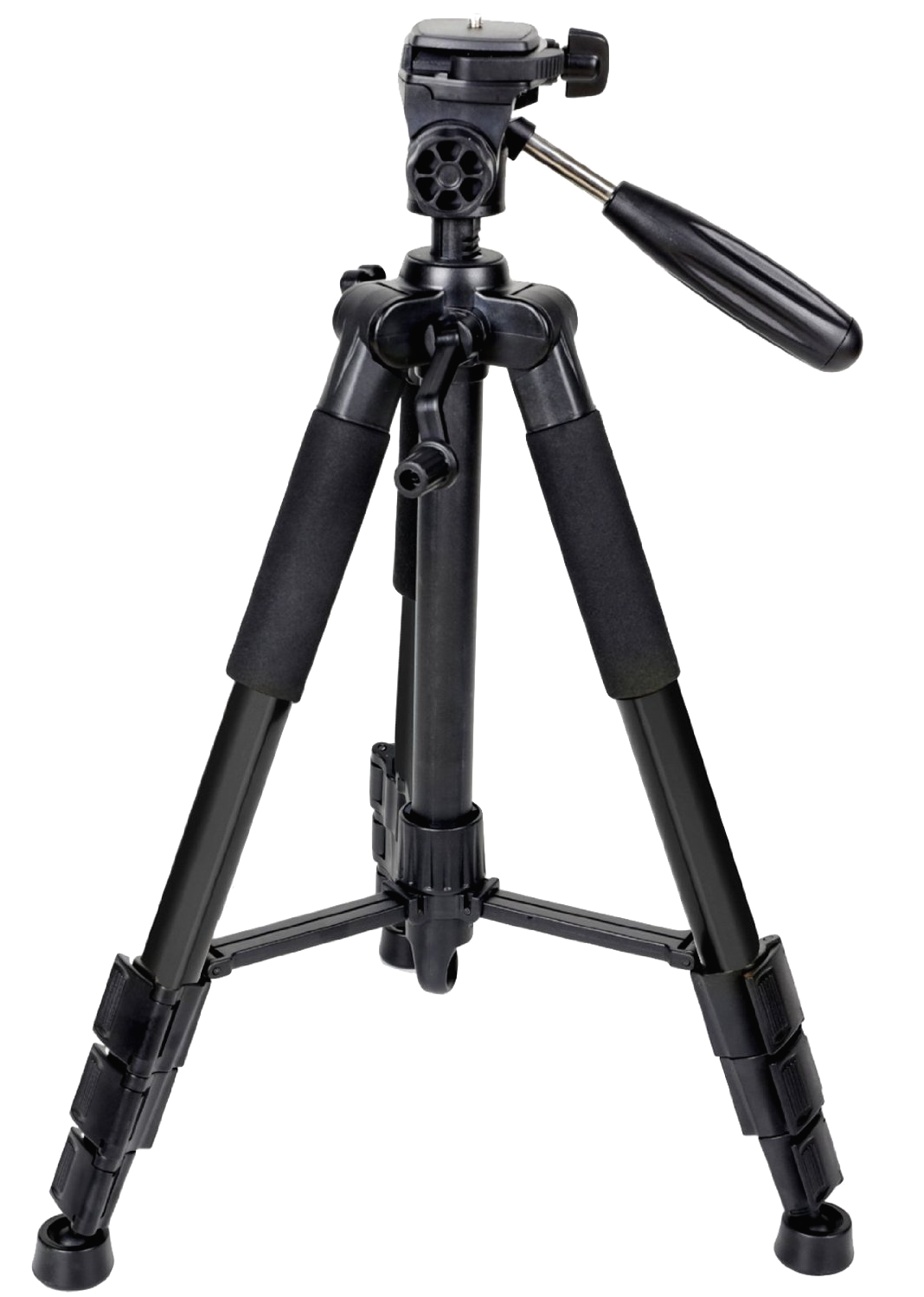

     Tripod
    Tripod
    $59 to $149

    There are a number of manufactures of tripods from which you can choose. You can typically get one in the $59 to $149 price range that is sturdy enough for a school TV studio.

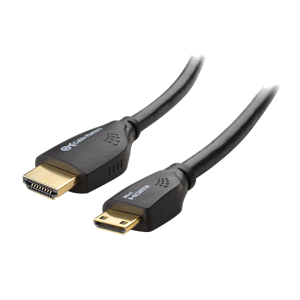

     Mini HDMI to HDMI Cable
    Mini HDMI to HDMI Cable
    $15 to $25
    It's recommended that the length of this cable be 15 feet or less due to single loss. Some sources say you may be able to use cables up to 25 feet, but the length can vary due to different cameras output strength. We recommend staying with 15 feet. But we have information of the TV Studio Multiple Cameras page if 15 feet does not work in your situation.

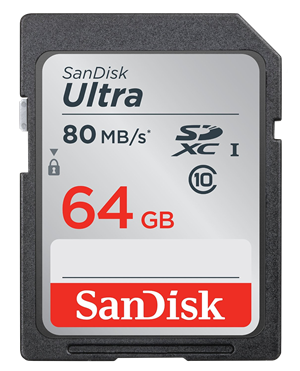

     Memory Card
    64 GB Memory Card
    $20 to $28
    You will most likely want to purchase at least one memory card for the video camera. This will allow you to use the camera to record events around the school.
    As you can see, you should expect to pay approximately $295 to $500 to connect one video camera to your Extron unit. Contact John Dendrinos (john.dendrinos@knoxschools.org) for help locating the best places to purchase your equipment.
    It is possible to connect a second camera to the Extron unit if you have the budget to do so. However, the Extron will only allow a simple cut from one camera to the other. There are no fancy transitions from which to pick.



The Total Cost

  •  OPTION A-1

    Add one video camera, tripod, memory card, and HDMI cable
     $300 to $500*
     OPTION A-2

    Add two video cameras, tripods, memory cards, and HDMI cables
     $600 to $1,000*
    If you are interested in adding a message/bulletin board that will run throughout the school day, check out the 'Adding a Message Board' on the left.

    * The costs listed here were correct as of February 2016. They are posted here only as an approximation of expected cost and are subject to change.
